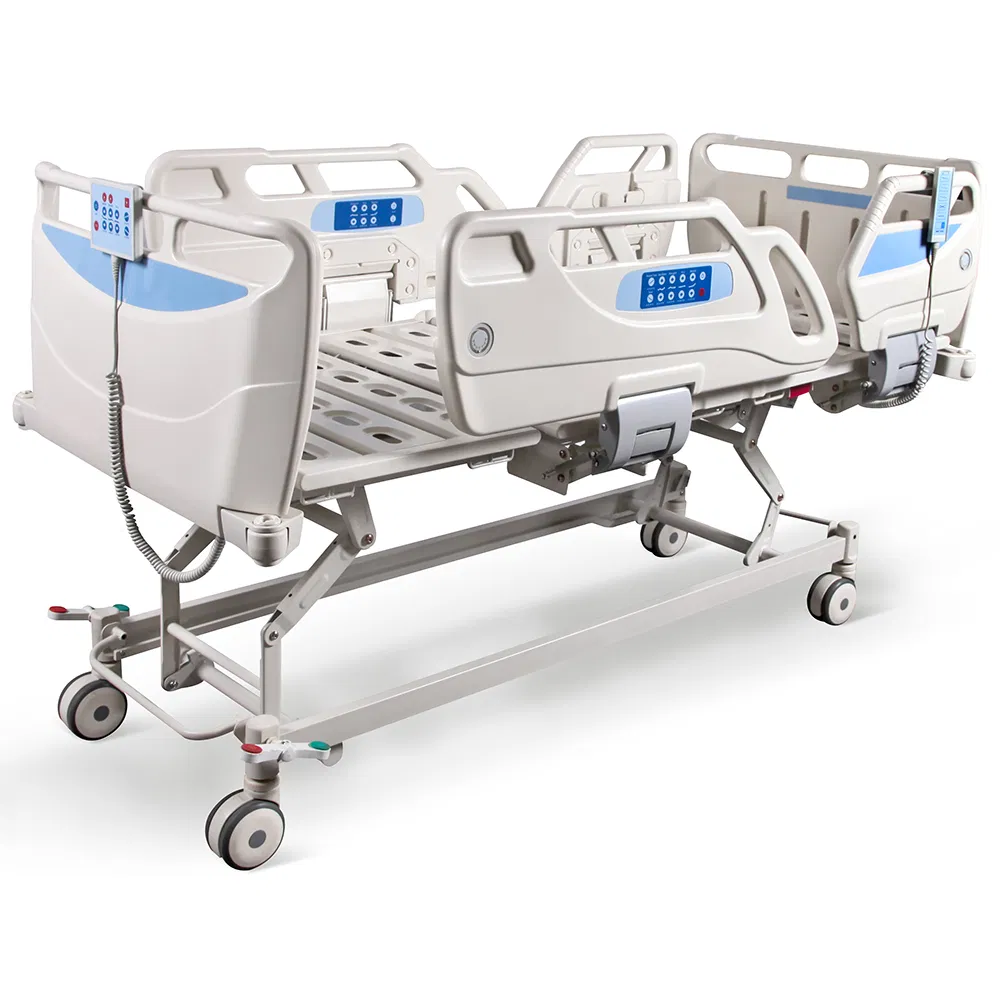

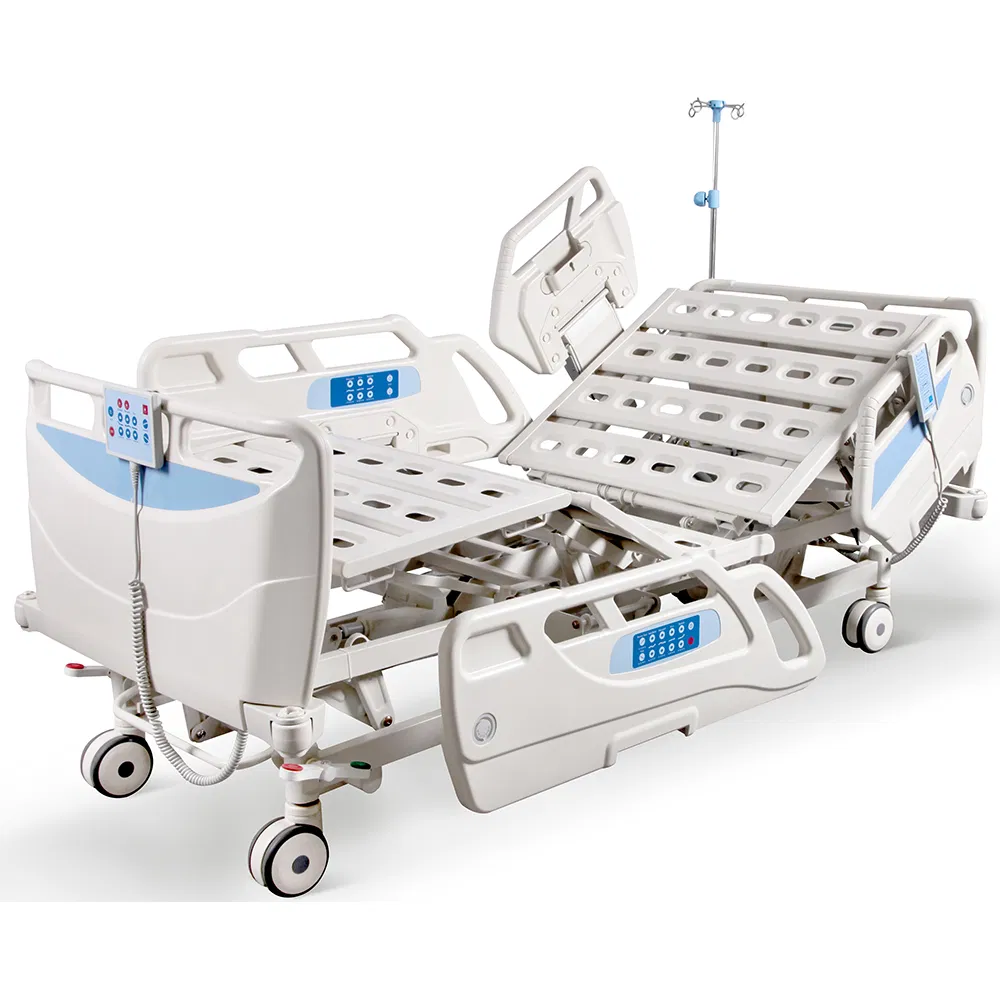

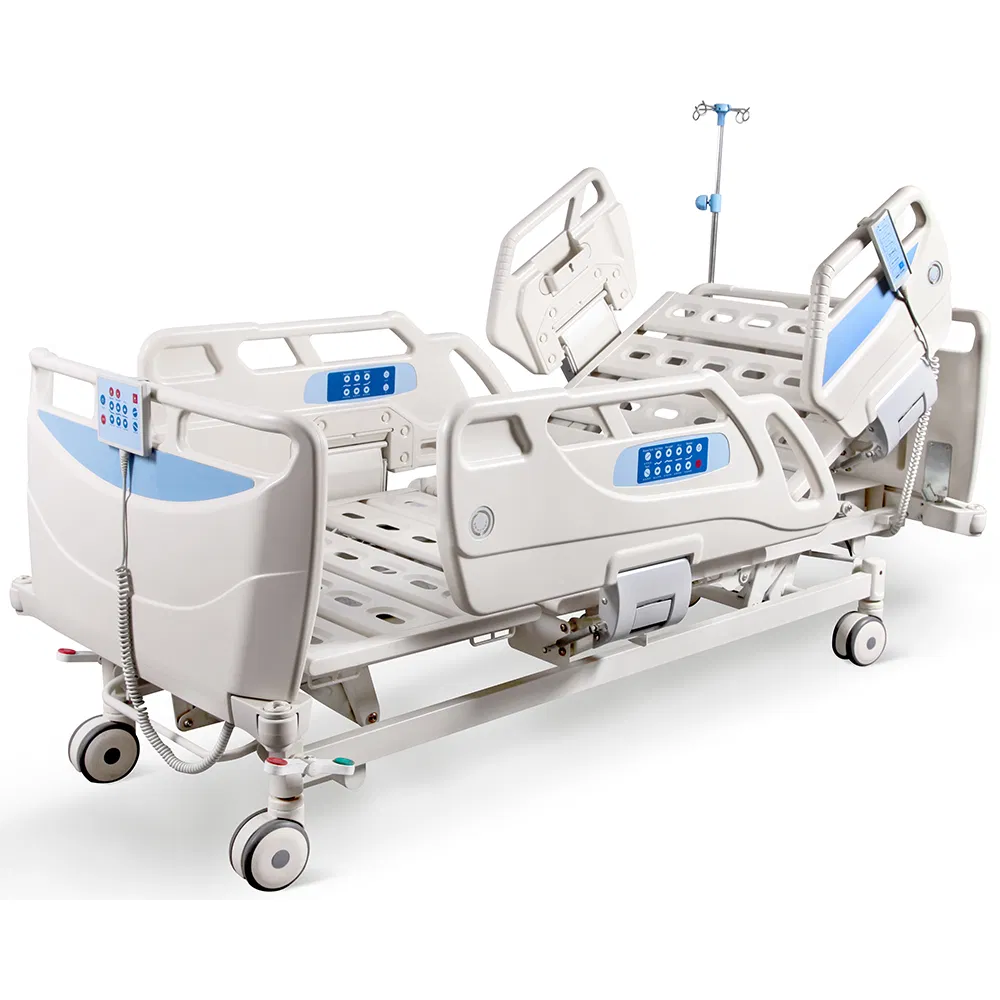

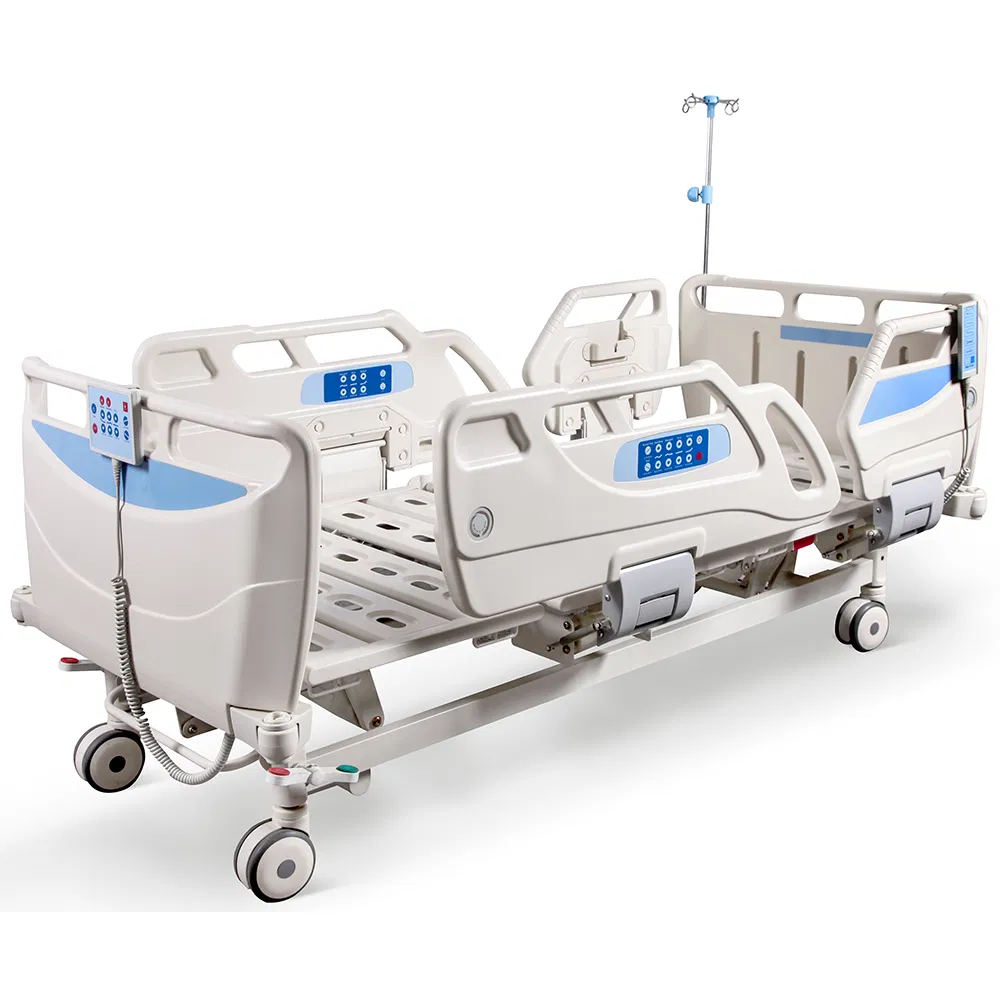

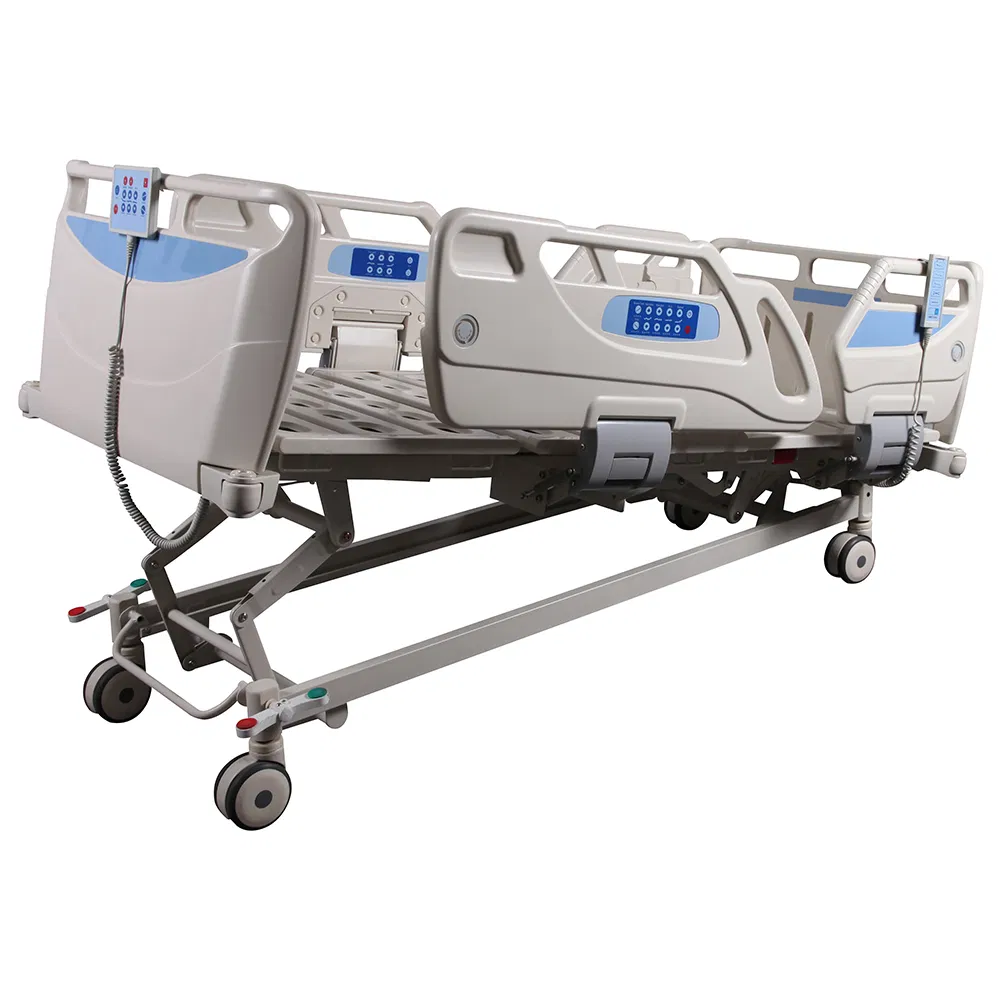

Sk001-15 High Quality Electric Hospital ICU Bed with CPR
Sk001-15 High Quality Electric Hospital ICU Bed with CPR
Sk001-15 High Quality Electric Hospital ICU Bed with CPR
Sk001-15 High Quality Electric Hospital ICU Bed with CPR
Sk001-15 High Quality Electric Hospital ICU Bed with CPR
1 / 5
Sk001-15 High Quality Electric Hospital ICU Bed with CPR
Sk001-15 High Quality Electric Hospital ICU Bed with CPR
Sk001-15 High Quality Electric Hospital ICU Bed with CPR
Sk001-15 High Quality Electric Hospital ICU Bed with CPR
Sk001-15 High Quality Electric Hospital ICU Bed with CPR

Sk001-15 High Quality Electric Hospital ICU Bed with CPR

Customization: Available
Material: Metal
Type: Electric Bed
Send Inquiry

Product Description

Basic Specifications
Model NO.
Sk001-15 ICU Bed
Type
Five-function Electric
Using Ambient
Hospital & Home
Certification
CE, FDA, ISO13485
Condition
New
Sample
Available
Warranty
2 Years
Service
Lifetime
MOQ
1 PCS
Dimensions
2175*990*(420-800)mm
Product Description

Sk001-15 High Quality Electric Hospital ICU Bed With CPR

Quality Control Highlights
  • 4pcs HDPE guardrail with angled display and built-in controller, safety-operated from outside.
  • Full length size: 2175mm±10mm; Overall width: 990mm.
  • Materials: Baosteel from Fortune Global 500; Environmental plastic sterilizable at 100°C.
  • Solid bed base made of 5.0mm stamped rotating plate.
  • 11 Process epoxy painting, ASTM testing anti-bacterial, paint thickness 0.12mm.
  • American motor with UL/ROHS/EN standard, noise under 50dB.
  • IEC60601 Safety Standard compliant.
Key Functions & Accessories
5 Electric Functions: Includes CPR quick release back part, nurse lock function, and one-button flat positioning.
  • Bed Sheet Top: Perforated steel with ten sections, epoxy powder coated.
  • Side Rails: Full ABS material, tuck-away design with built-in angle indicator.
  • Safe Protection: Guardrail height is 350mm above bed surface; includes patent bumper wheels.
  • Castors: Secure® 6" double side castors with central locking; passed 30KM dynamic testing.
  • Additional Features: Full SS IV pole (5kg bearing), oxygen cylinder rack, and utility basket (600*540*80mm).
  • Battery Backup: Supports 18-130 movements depending on load.

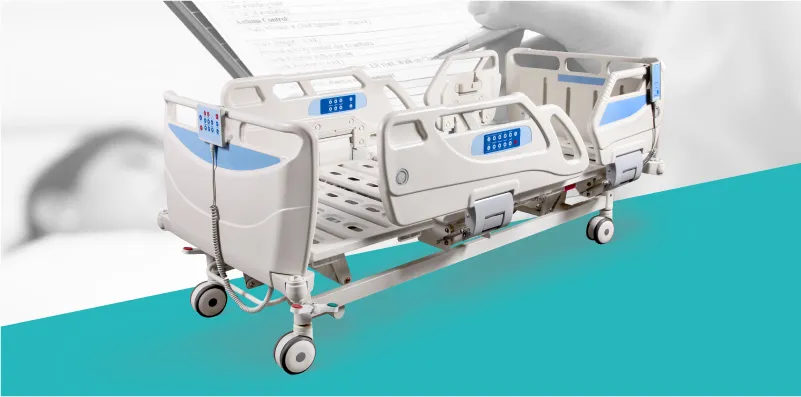

Electric Hospital ICU Bed
Technical Parameters
Parameter Category / Specification
External L*W*H2175*990*(420-800)mm
Mattress Platform1925*900mm
Safe Working Load250kg
Back-rest Adjustment0-75°(±10°)
Knee-rest Adjustment0-45°(±10°)
Reverse Trendelenburg0-16°
Trendelenburg0-16°
Angle Indicator0-90°
Linear Motor4pcs
Castors6" Double Side, Central Locking (4pcs)
Wall Bumper WheelΦ85mm (4pcs)
IV PoleFull Stainless Steel (1set)
Product Detail View
ICU Bed Detail 1

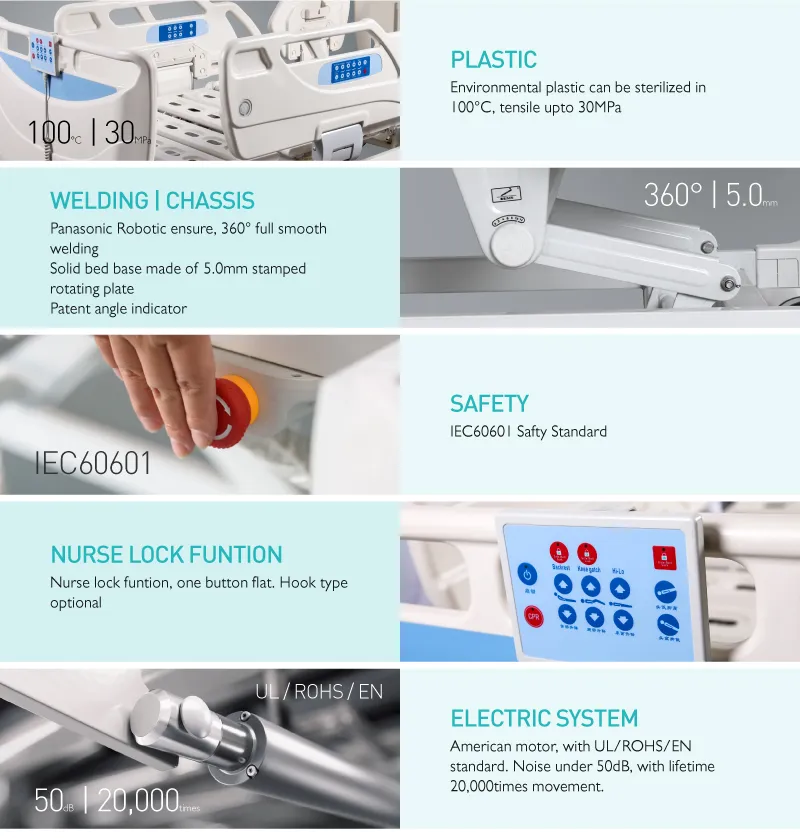

ICU Bed Detail 2

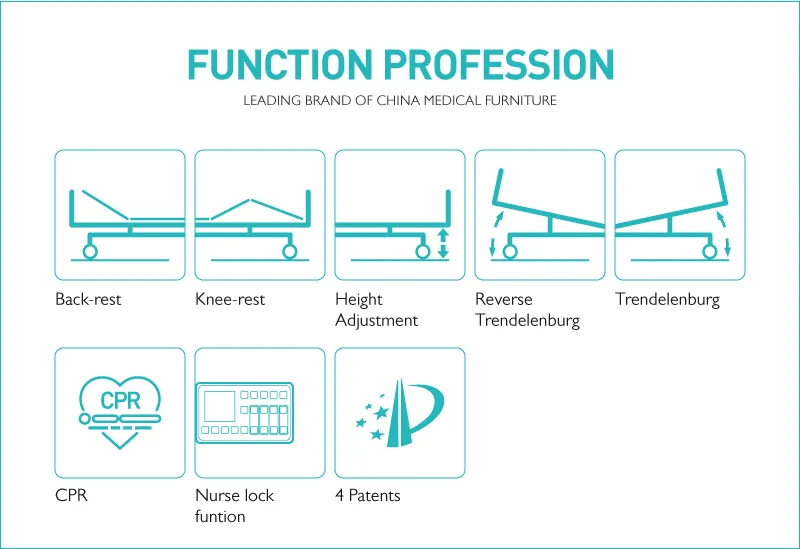

ICU Bed Detail 3

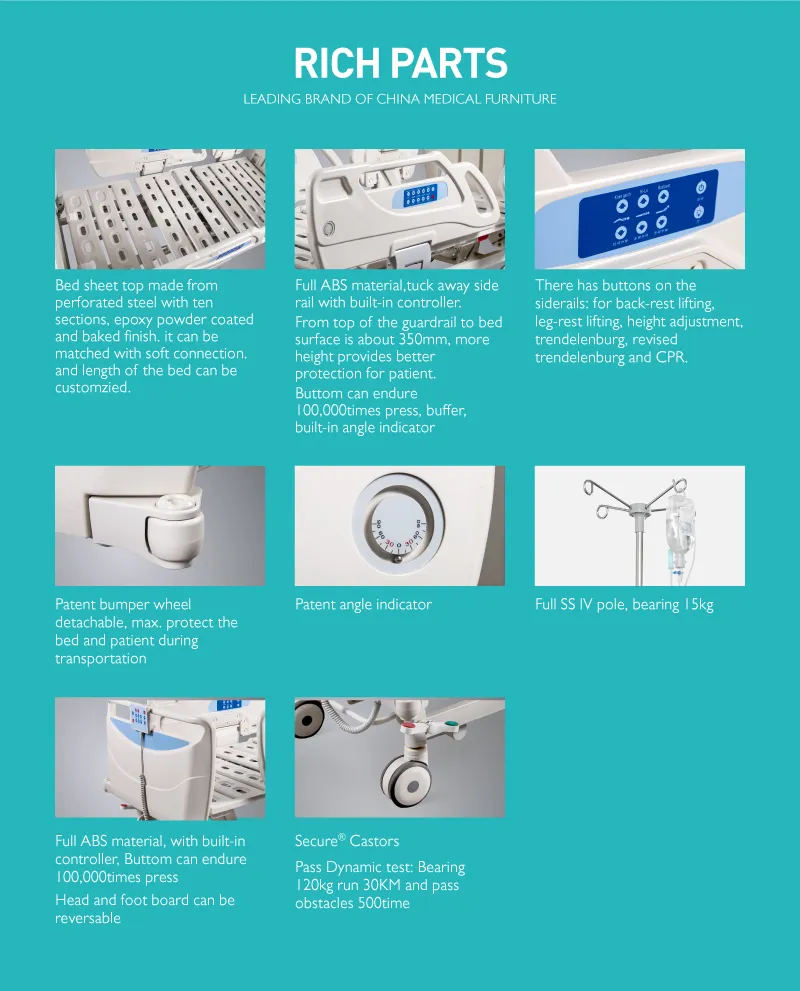

ICU Bed Detail 4

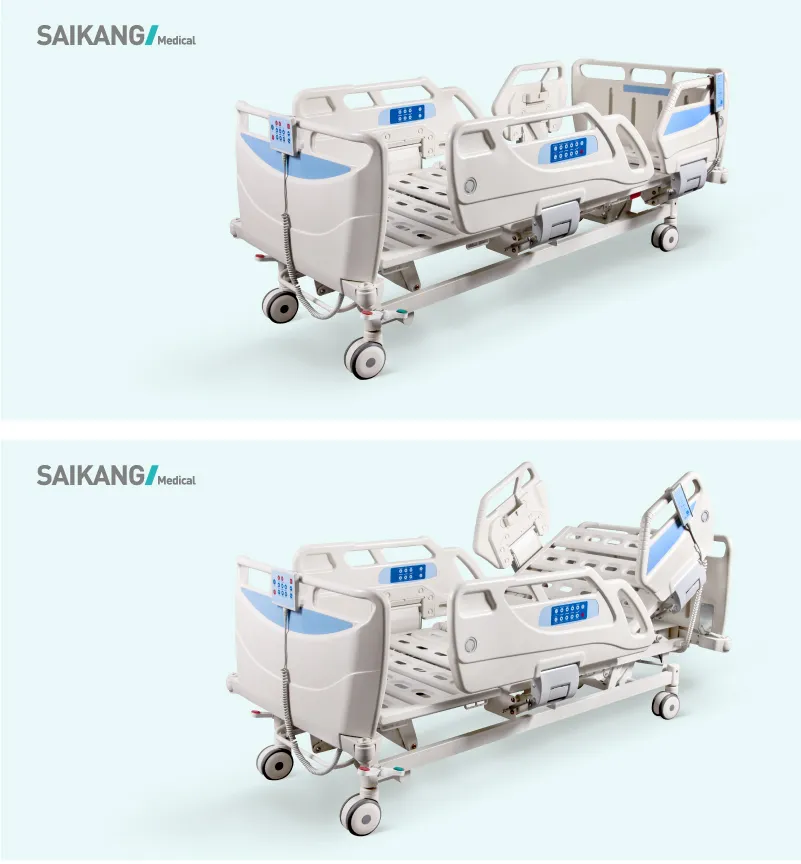

ICU Bed Detail 5

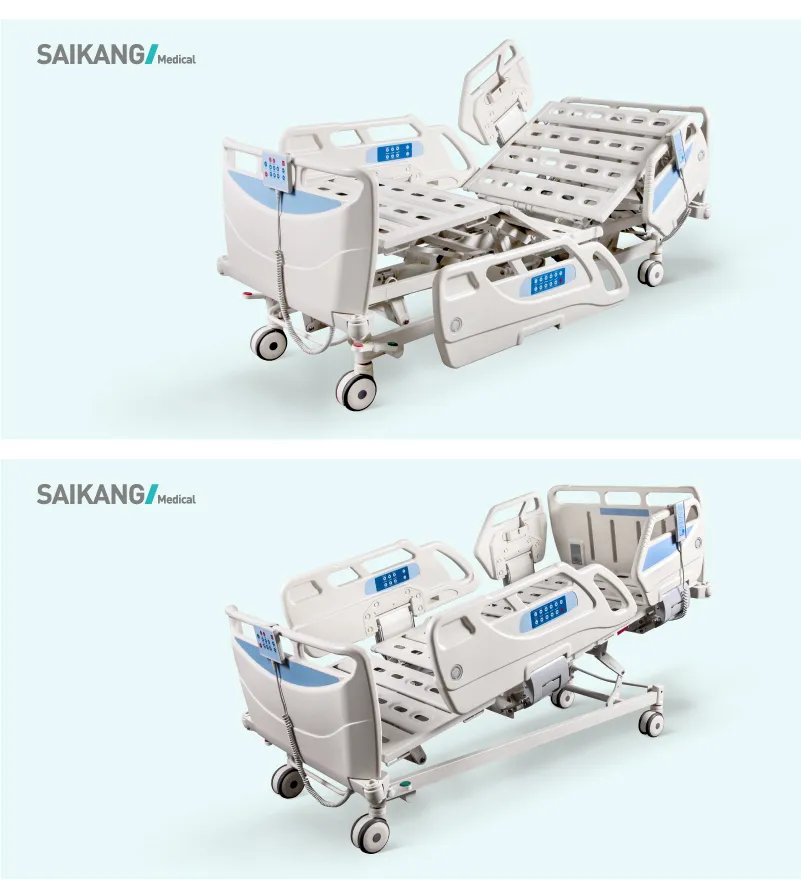

ICU Bed Detail 6
ICU Bed Detail 7
ICU Bed Detail 8
ICU Bed Detail 9
ICU Bed Detail 10
Frequently Asked Questions
What are the main electric functions of the Sk001-15 ICU bed?
The bed features 5 main functions, including back-rest adjustment, knee-rest adjustment, height adjustment, Trendelenburg, and Reverse Trendelenburg, along with a CPR quick-release function for emergencies.
What is the safe working load capacity?
This professional ICU bed is designed with a safe working load capacity of 250kg, supported by a solid 5.0mm stamped rotating plate bed base.
How does the guardrail system protect the patient?
The bed is equipped with 4pcs HDPE guardrails that reach 350mm above the bed surface for enhanced protection. They feature built-in angle indicators and can only be operated from the outside for safety.
Does the bed include a battery backup?
Yes, it comes equipped with a battery that allows for up to 18 movements with a 100kg load, ensuring functionality during power outages or patient transport.
What type of motors are used in this hospital bed?
The bed uses high-quality American motors that meet UL, ROHS, and EN standards, operating quietly under 50dB with a lifetime of up to 20,000 movements.
Are the castors suitable for frequent transport?
Absolutely. The bed features 6" Secure® double-side castors with a central locking pedal. They have passed dynamic tests involving a 120kg load over 30KM with 500 obstacle passes.
