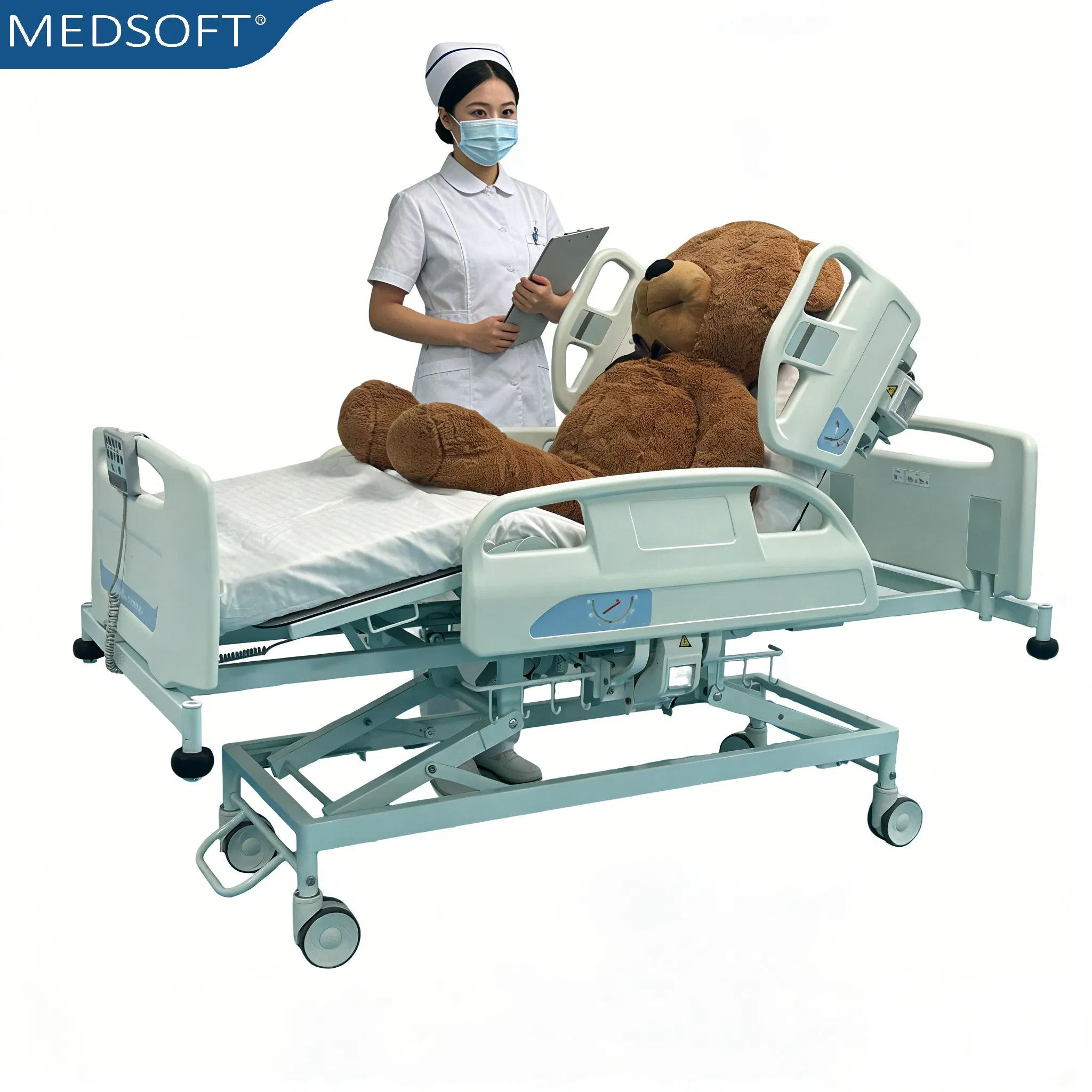

iBed 1A Hospital Furniture, Five Functions ICU Adjustable Electric Nursing Hospital Bed with Ce& ISO
iBed 1A Hospital Furniture, Five Functions ICU Adjustable Electric Nursing Hospital Bed with Ce& ISO
iBed 1A Hospital Furniture, Five Functions ICU Adjustable Electric Nursing Hospital Bed with Ce& ISO
iBed 1A Hospital Furniture, Five Functions ICU Adjustable Electric Nursing Hospital Bed with Ce& ISO
iBed 1A Hospital Furniture, Five Functions ICU Adjustable Electric Nursing Hospital Bed with Ce& ISO
1 / 5
iBed 1A Hospital Furniture, Five Functions ICU Adjustable Electric Nursing Hospital Bed with Ce& ISO
iBed 1A Hospital Furniture, Five Functions ICU Adjustable Electric Nursing Hospital Bed with Ce& ISO
iBed 1A Hospital Furniture, Five Functions ICU Adjustable Electric Nursing Hospital Bed with Ce& ISO
iBed 1A Hospital Furniture, Five Functions ICU Adjustable Electric Nursing Hospital Bed with Ce& ISO
iBed 1A Hospital Furniture, Five Functions ICU Adjustable Electric Nursing Hospital Bed with Ce& ISO

iBed 1A Hospital Furniture, Five Functions ICU Adjustable Electric Nursing Hospital Bed with Ce& ISO

Customization: Available
Material: Metal
Type: Electric Bed
Send Inquiry

Product Description

Basic Specifications

Model NO. iBed 1A Folded Folded
Using Ambient Hospital Numbers of Function Five-function
Certification CE, ISO13485 Condition New
Actuators Linak Actuators Control Panel Central Control Panel
Angle Indicators Backrest/ Overall Accessories Mattress, IV Hole, Drainage Bag
Production Capacity 12000 Units/Year HS Code 9402900
ICU Nursing Hospital Bed
ICU Adjustable Bed

Core Functions & Control

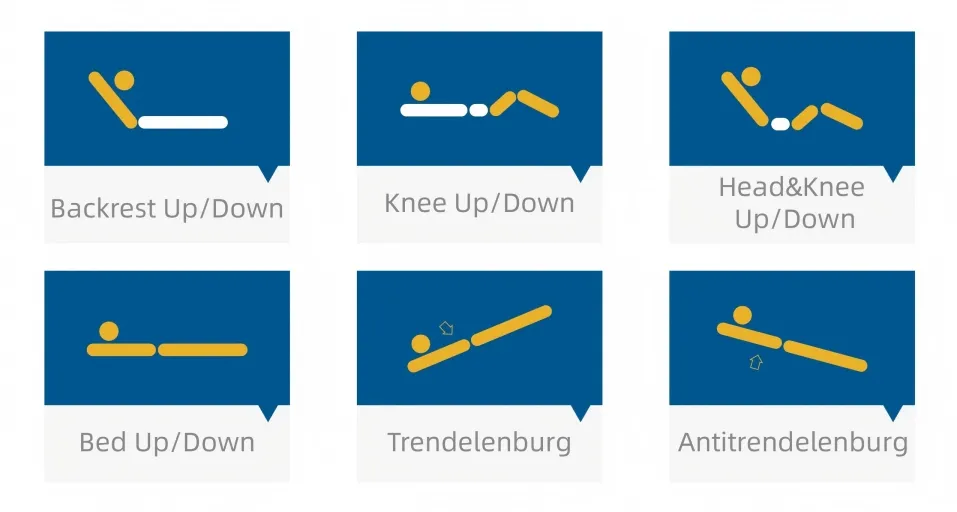

⚡ Basic Functions

Electric backrest Up/Down, Knee Up/Down, Bed Up/Down, Trendelenburg, and Antitrendelenburg movements for optimal patient positioning.

Basic Functions

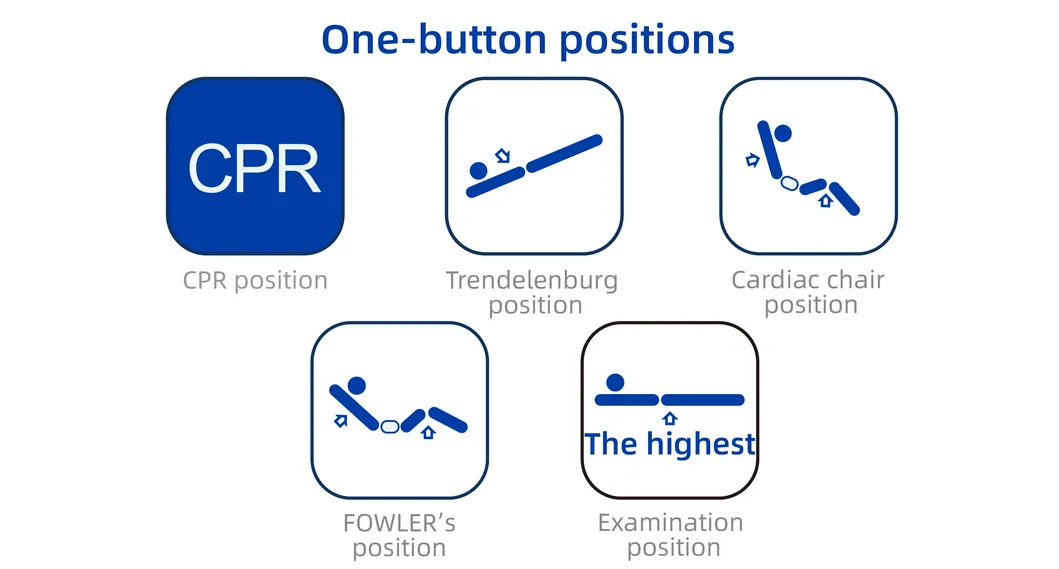

🔘 One-Button Positions

Quick access to Cardiac chair position, Trendelenburg, Fowler, Examination, and CPR positions with a single touch.

One Button Control

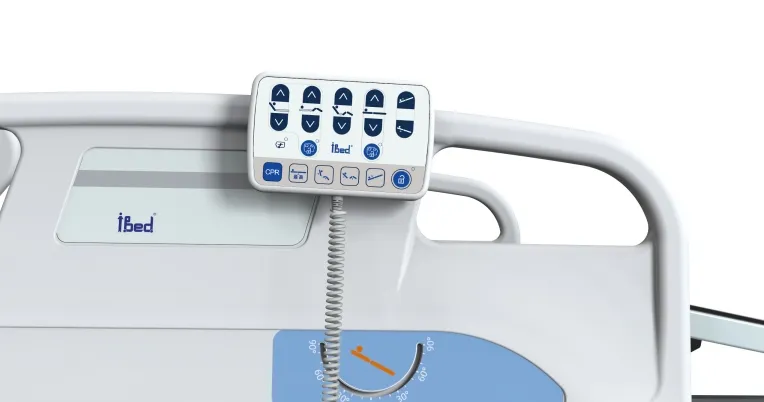

🎮 Caregiver Control

Multi-function controller with basic functions, critical one-button positioning, side guardrail lock, and power supply status display.

Control Panel

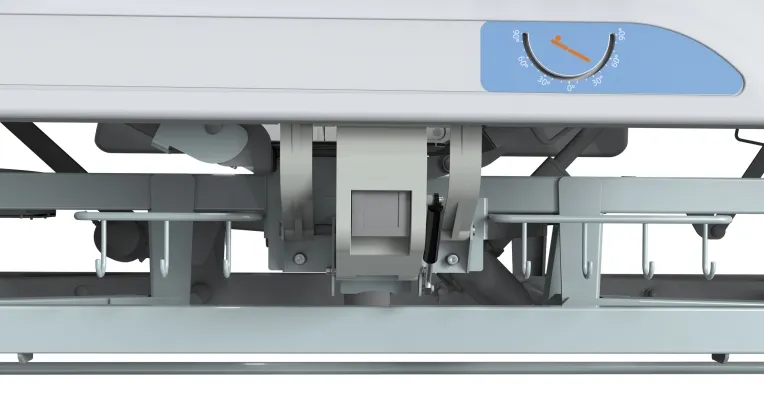

📐 Angle Indicators

Integrated indicators for backrest and bed. Supports VAP prevention measures by allowing precise 30-45° elevation.

Angle Indicator

Safety and Quality Control

  • Linak Motors: High-performance Denmark Linak motors for durable stability, meeting UL/ROHS/EN standards.

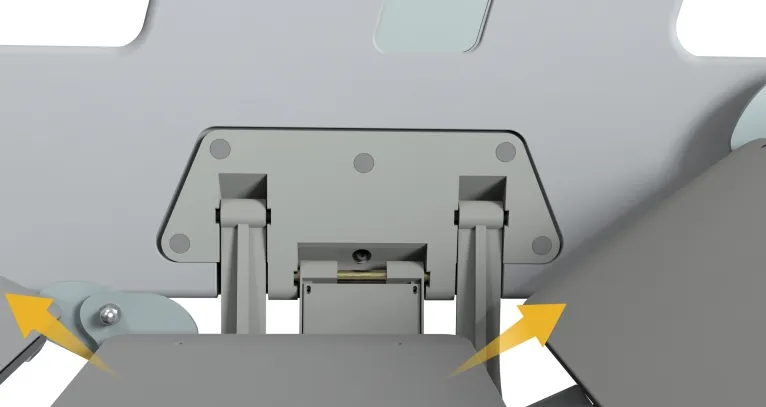

  • Auto-Rollback: Reduces patient displacement and shear force during body position adjustments.

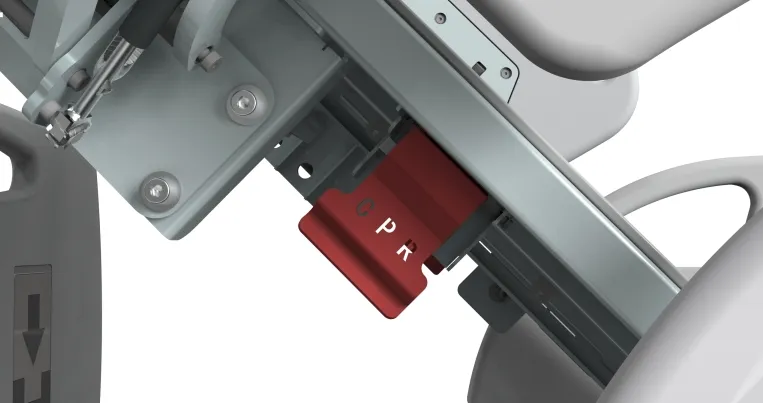

  • Manual CPR: Dual-sided levers with damping devices allow for controlled, slow backrest descent.
  • Structural Integrity: Built with premium Baosteel and processed with anti-bacterial epoxy painting (ASTM tested).
  • Locking System: Four-wheel linkage central lock for easy swivel, direction, and stationary control.

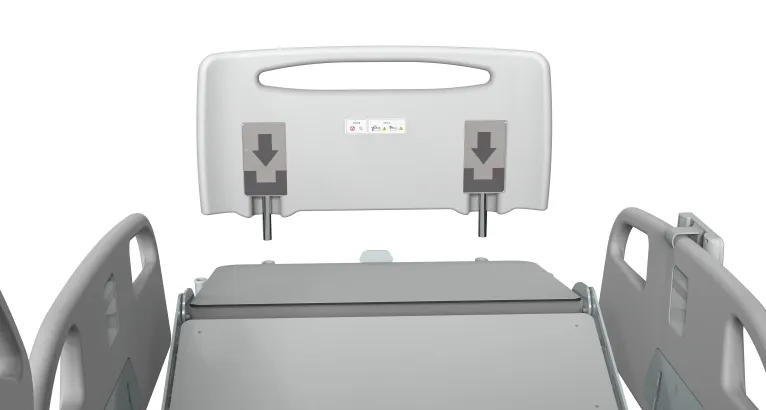

  • Removable Components: HDPE headboard and footboard are one-step removable for emergency access.
Auto Rollback
Headboard
CPR Lever

Technical Parameters

Overall Size 2200*995*480-850mm Mattress Platform 2000*811mm
Safe Working Load 200kg Head Up/Down 0-70°
Knee Up/Down 0-35° Trendelenburg 0-16°
Antitrendelenburg 0-16° Angle Indicator 0-90°
Linear Motors 4 Units Castors 5" Central Locking

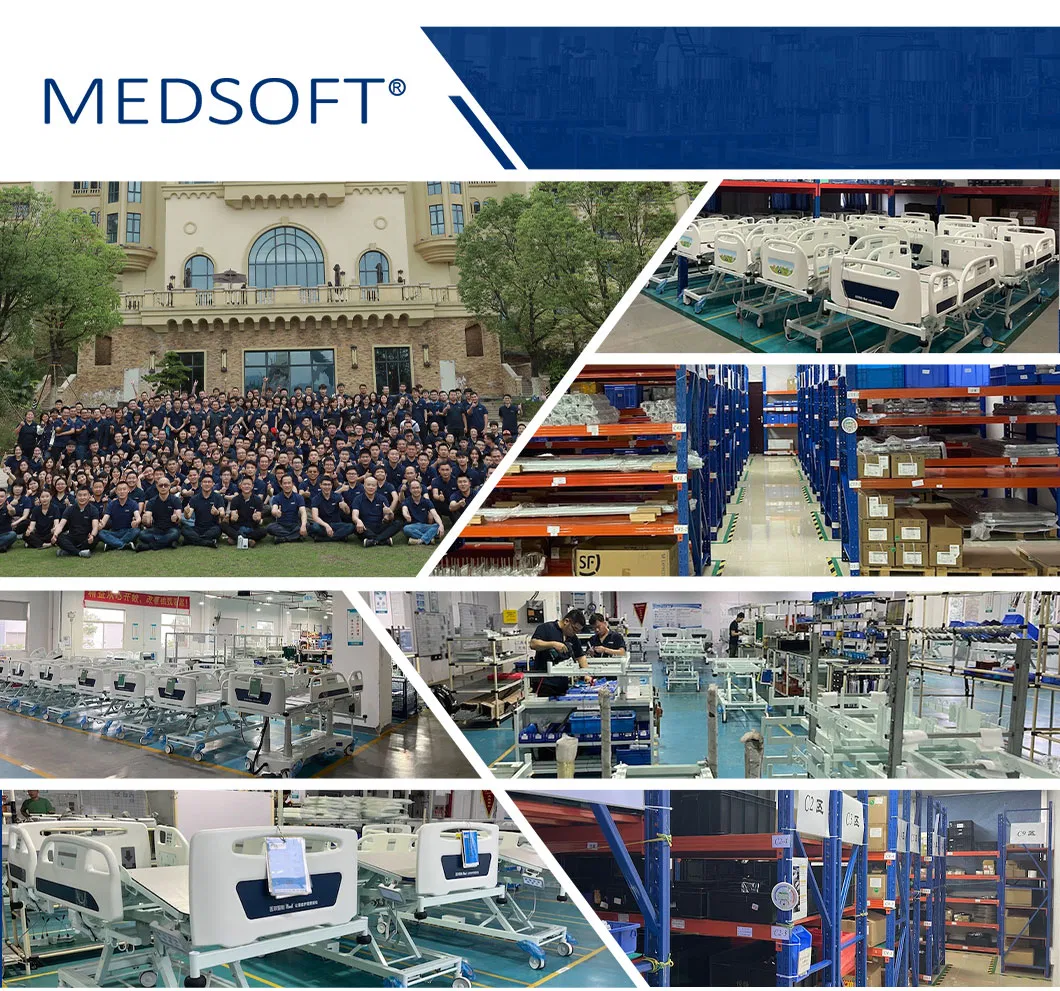

Quality Manufacturing

Our focus is on the R&D of medical devices for critical care medicine. By integrating clinical expertise with advanced manufacturing, we provide solutions for microcirculation, respiratory support, and intelligent nursing systems designed to enhance patient outcomes.

Frequently Asked Questions

What are the main electric functions of the iBed 1A?
The bed features five primary electric functions: backrest up/down, knee up/down, height adjustment, Trendelenburg, and reverse Trendelenburg.
How does the CPR function work for emergencies?
The bed is equipped with both electric and manual CPR releases. The manual dual-sided levers include a damping device to ensure the backrest descends safely and slowly.
What is the safe weight capacity for this hospital bed?
The safe working load for the iBed 1A is 200kg, supported by high-quality actuators and a robust steel frame.
Can the bed height be adjusted for medical imaging?
Yes, the height is adjustable from 480mm to 850mm, which is designed to fit C-arm equipment for bedside imaging.
Does the bed have battery backup for transport?
Yes, it includes a battery capable of 18 movements with a 100kg load or 130 movements without a load, ensuring functionality during power outages or patient transport.
What certifications does the product hold?
The iBed 1A is fully certified with CE and ISO13485, meeting international safety and quality standards for medical furniture.
