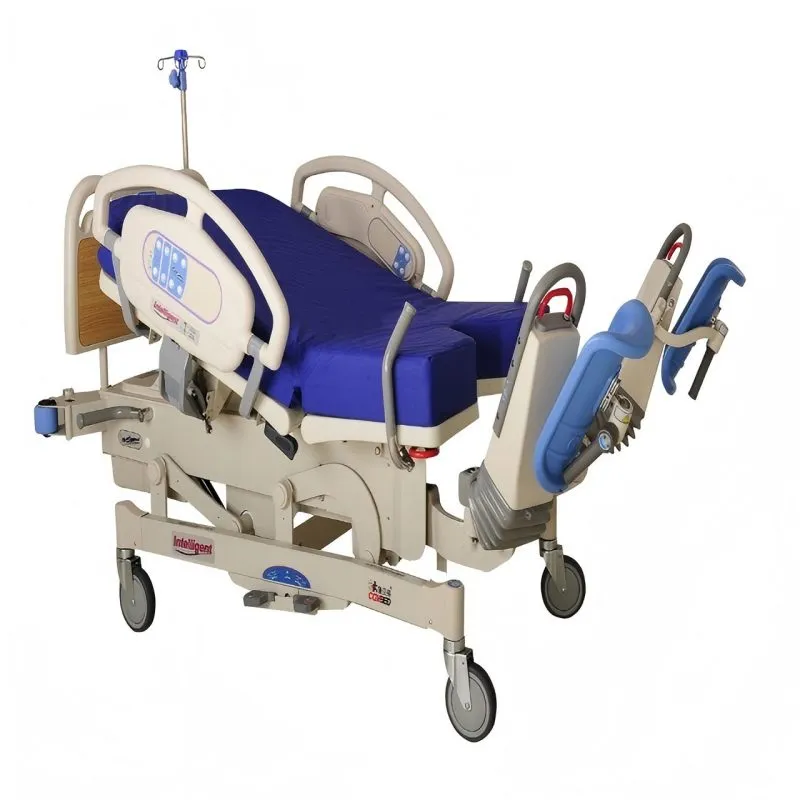

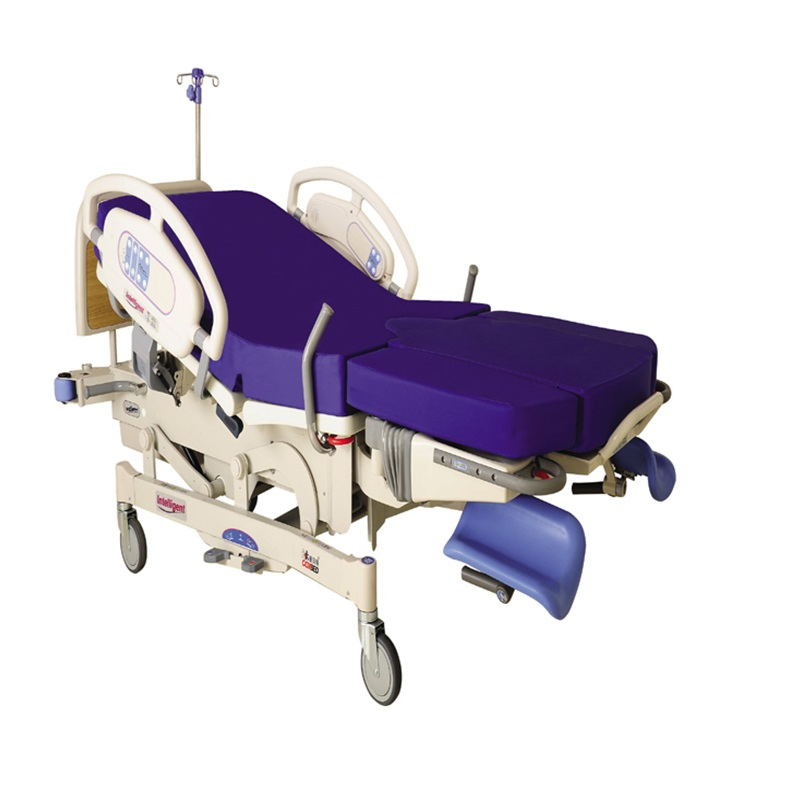

Intelligent Electric Obstetric and Gynecological Ldr Delivery Bed with Central Brake

1 / 5

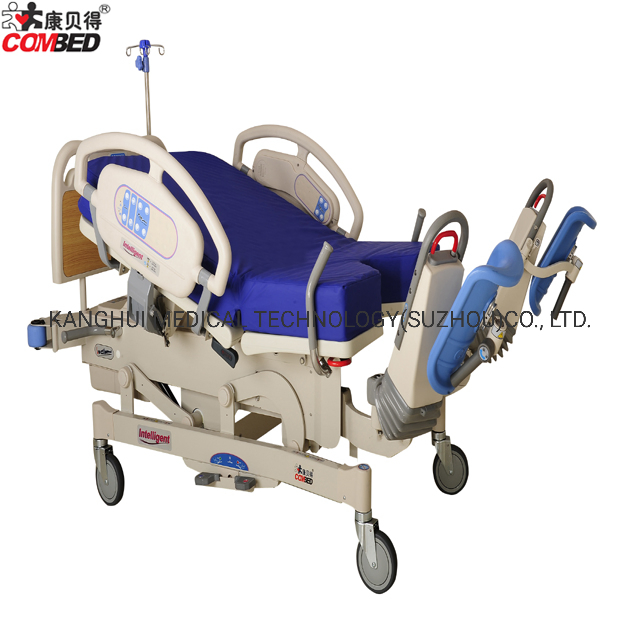

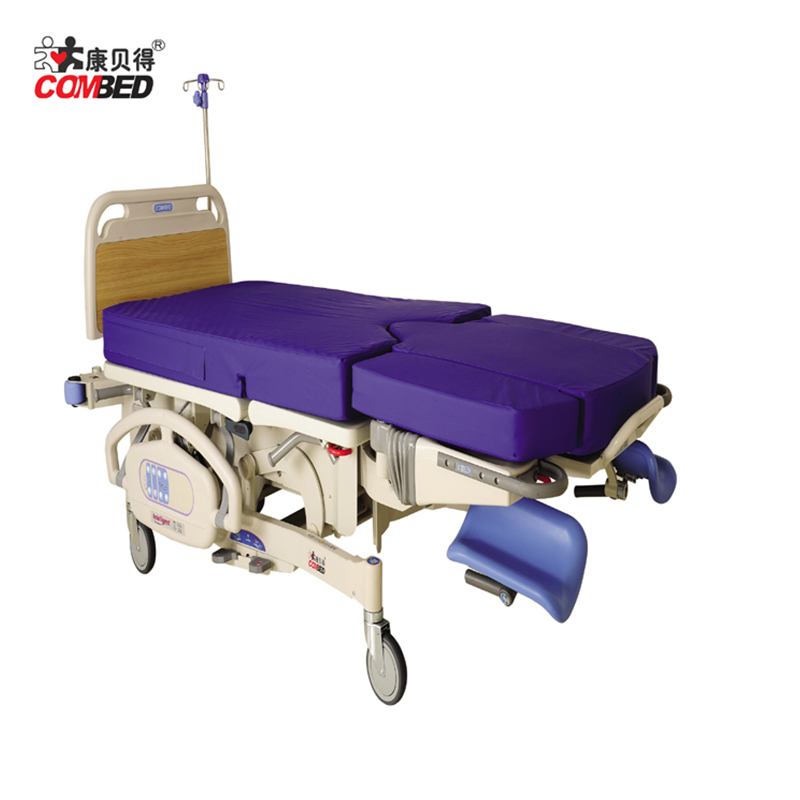

Intelligent Electric Obstetric and Gynecological Ldr Delivery Bed with Central Brake

Customization:	Available
Material:	Metal
Type:	Electric Bed

Send Inquiry

Product Description

📋 Basic Information

Model NO.

DH-C101A06

Status

Unfolded

Using Ambient

Hospital

Functions

Five-function

Certification

CE, FDA, ISO13485

Motor

Linak

Mattress

Sponge

Warranty

1 Year

✨ Product Description

Simple & Flexible: Operation is intuitive and convenient for medical staff.
Stability: Equipped with a central brake system for maximum bed stability.
Dual Control: Clear marked control panels on both side guardrails for nurses and patients.
Patient Comfort: Injection molding plastic side rails provide a warm and comfortable touch.
Smart Design: Retractable guardrails allow easy passage through narrow aisles and zero-space transportation.

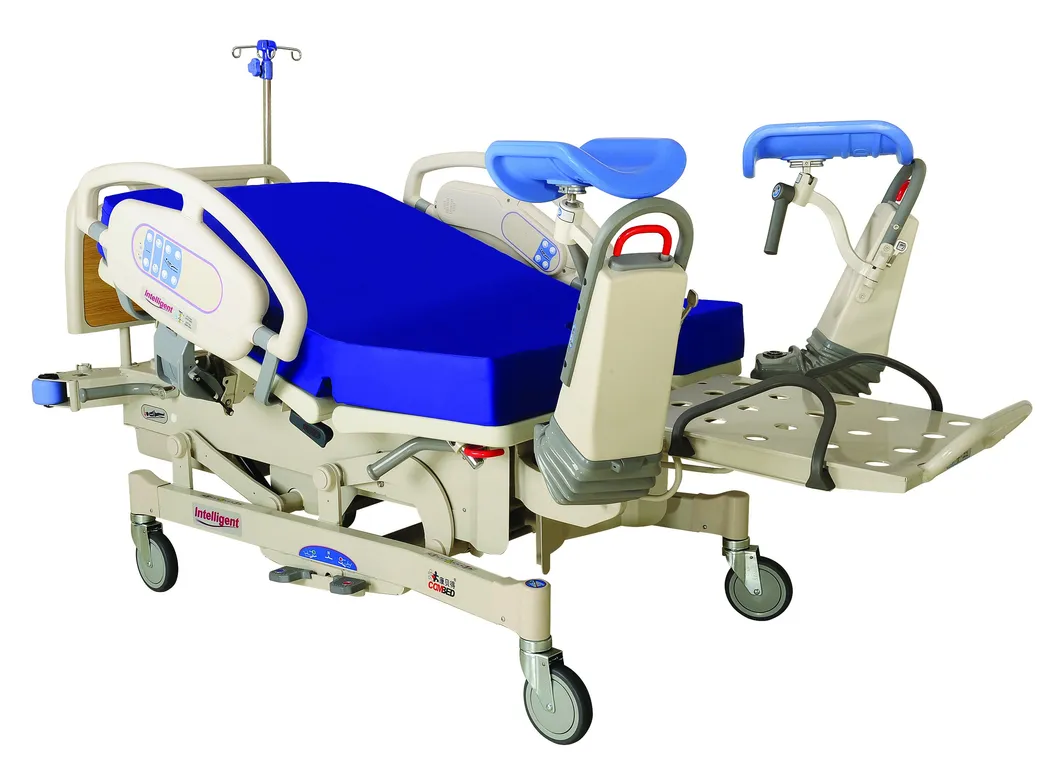

The Intelligent Electric Obstetric and Gynecological LDR Delivery Bed is designed to support the entire labor process. Features include:

Retractable and electrical height adjustable leg holders to reduce nursing stress.
Movable leg board offering a larger working space for clinicians.
Easy-to-operate foot rest and CPR spanner for emergency situations.
Anti-corrosion, anti-odor, and easy-to-clean plastic mattress supports.
Automatic night light to illuminate the ground for safety.
Battery backup ensures uninterrupted operation during power failures.
Low bed position provides stable support for mothers.
Supports multiple labor positions: supine, sitting, lateral, and kneeling-squatting.

📊 Product Parameters

Parameter Item	Specifications
Bed dimension (mm)	1950±20 × 860±15
Bed height (mm)	Min. 485±20 / Max. 900±20 (excludes mattress)
Back section turning	≥63°
Seat section turning	≥15°
Trend/reverse trend	Trend ≥8°
Foot rest rotate out / turn up	≥90° / ≥90°
Side rail lifting (mm)	400±20

📦 Packing & Delivery

We offer flexible transportation modes including air shipping, sea shipping, or courier services to suit your convenience.

🛠️ After-service Support

Technical Support

Comprehensive online assistance through operating manuals, installation guides, and instructional videos. Our engineers provide prompt analysis and solutions via online contact methods.

Warranty Service

During the warranty period, any non-human-induced parts failures are covered with free spare parts delivery.

Post-Warranty

Continued technical assistance and spare parts availability at competitive prices even after the warranty expires.

Frequently Asked Questions

What is the estimated delivery time for orders?

For items in stock, shipment is made within 3 days. Out-of-stock items usually take 10 days, while large-volume orders require approximately 30 days.

Does the bed work during a power outage?

Yes, the bed is equipped with a battery backup system to provide emergency power and ensure continuous operation when the main power is off.

What motor system does this bed use?

The bed utilizes high-quality Linak motors, known for their reliability and smooth adjustment performance.

Can the bed accommodate different labor positions?

Absolutely. The bed is designed to reach various labor positions including supine, sitting, lateral, and kneeling-squatting positions to comfort different women.

How do I receive training on using the bed?

We provide instructional videos and manuals. Additionally, customers are welcome to attend hands-on training sessions at our facility for comprehensive guidance.

What certifications does this medical bed hold?

This model is fully certified with CE, FDA, and ISO13485 standards, ensuring it meets international medical quality and safety requirements.

Product Detail

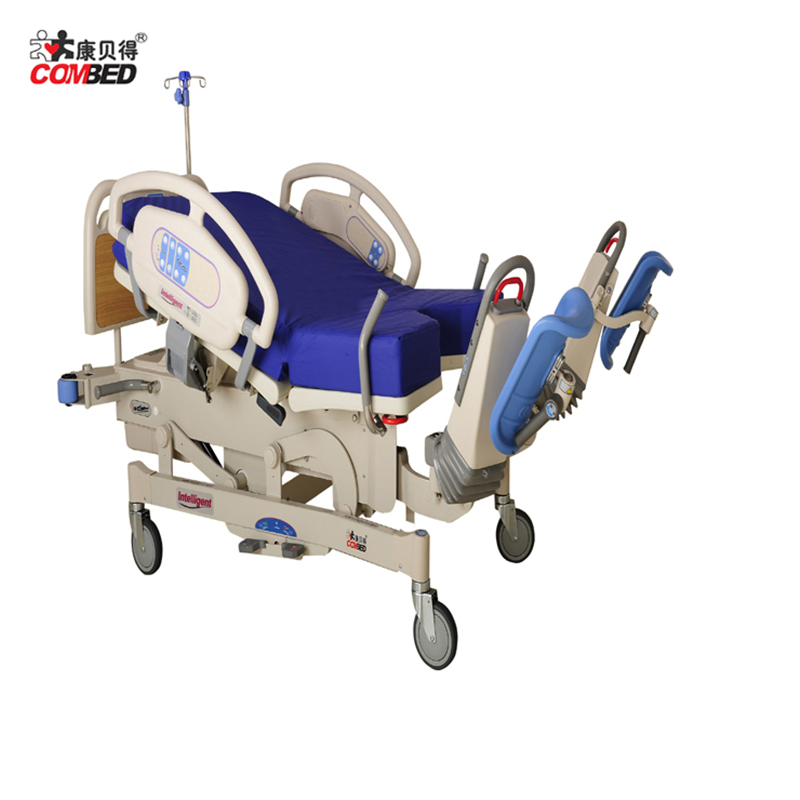

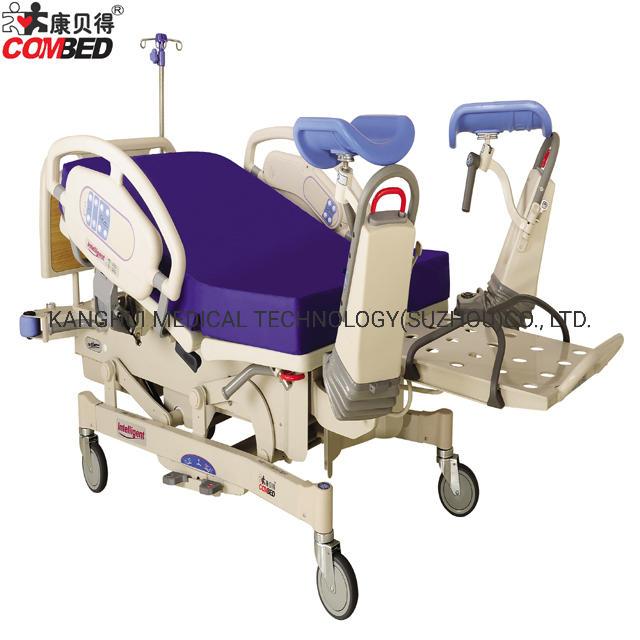

Intelligent Electric Obstetric and Gynecological Ldr Delivery Bed with Central Brake
