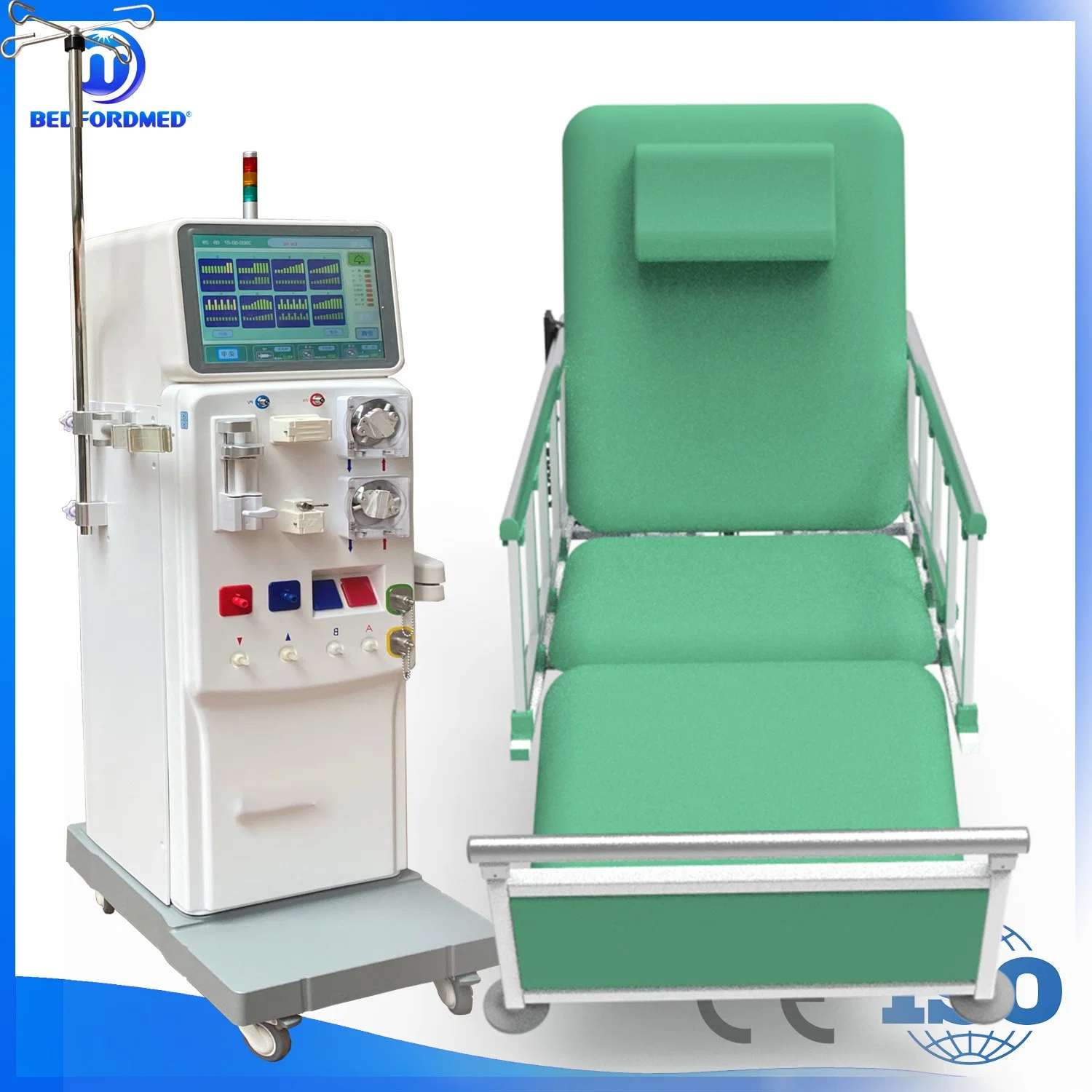

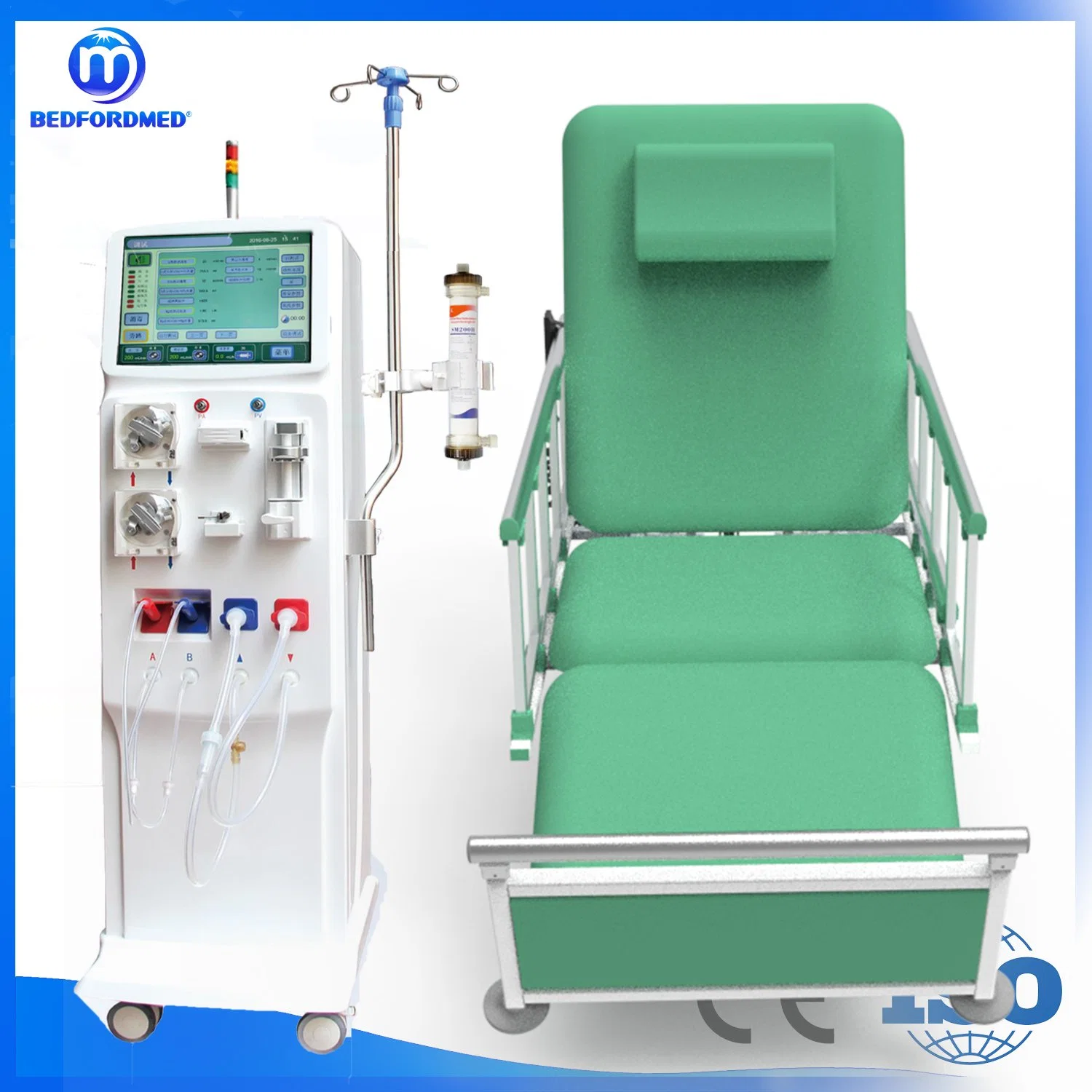

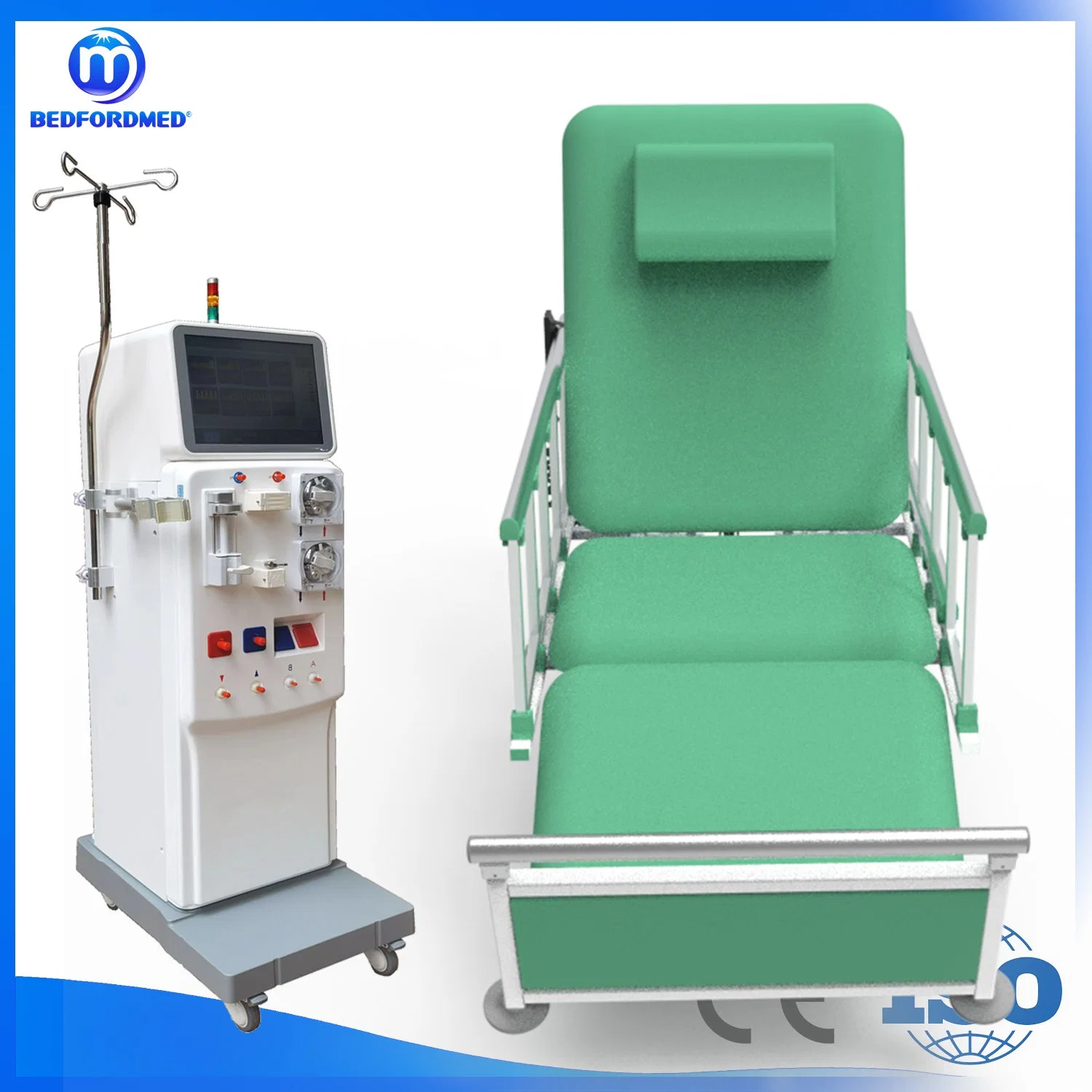

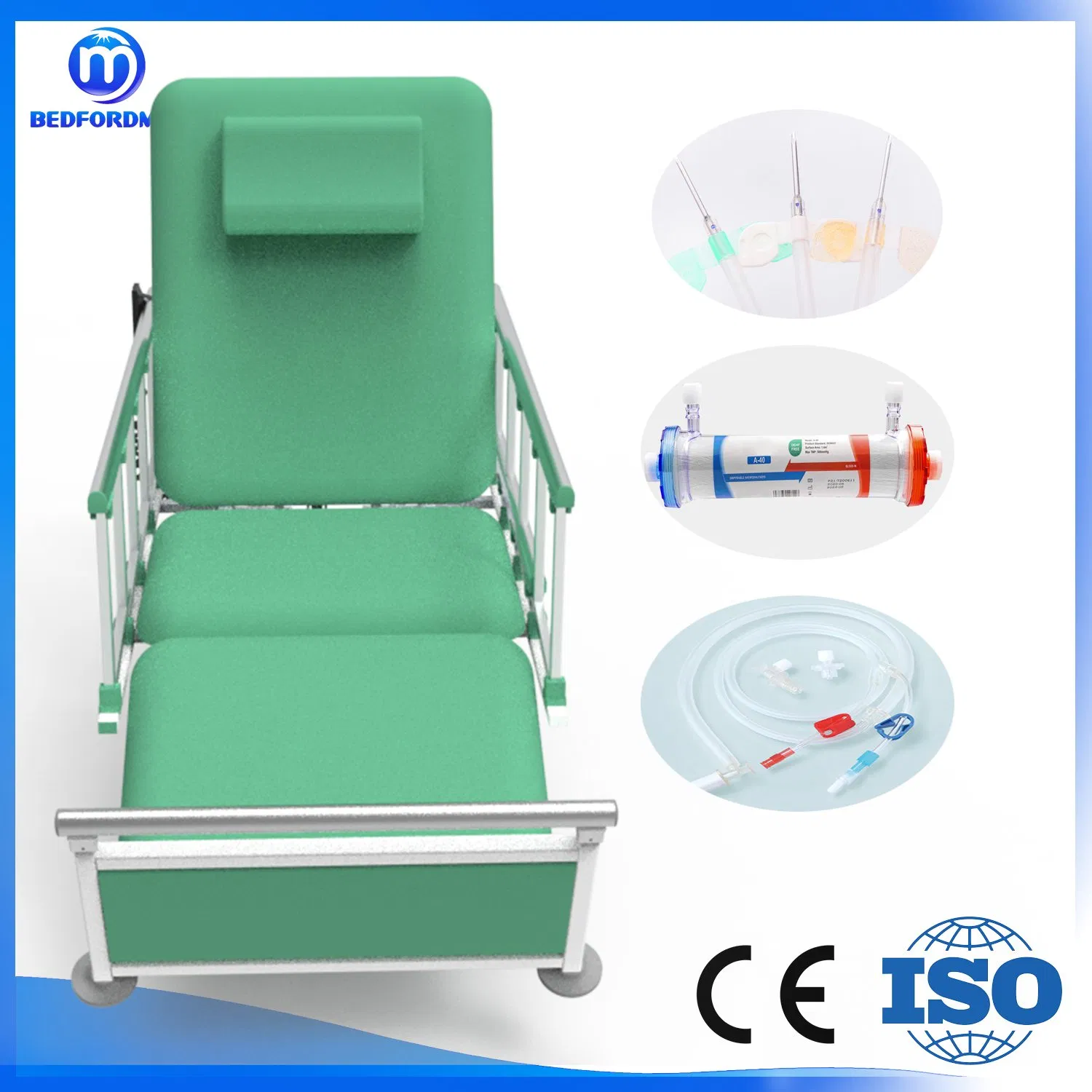

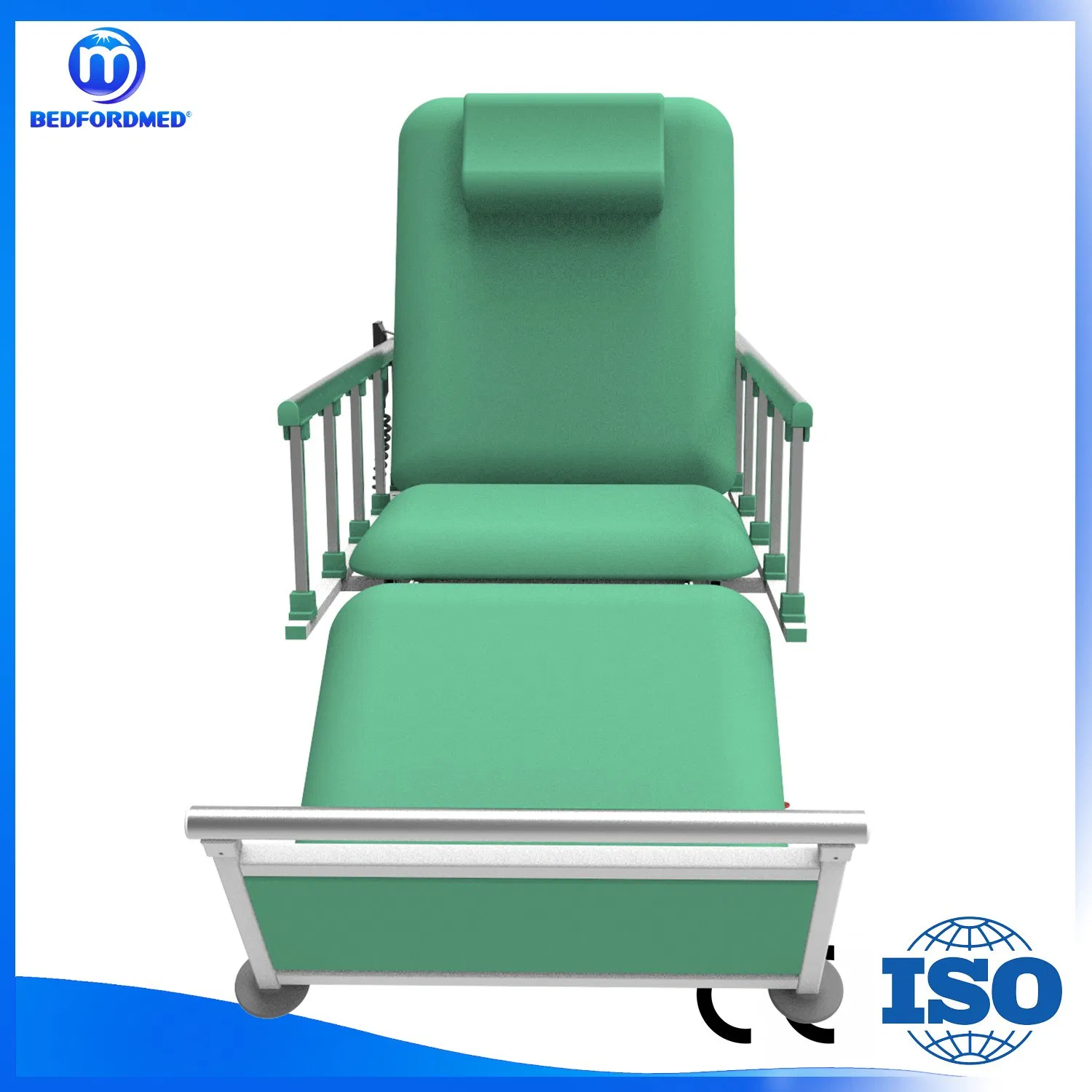

Multiple Medical Electric Dialysis Bed Dialysis Equipment Model Me380s

1 / 5

Multiple Medical Electric Dialysis Bed Dialysis Equipment Model Me380s

Customization:	Available
Material:	Metal
Folded:	Folded

Send Inquiry

Product Description

Basic Information

Model NO.

ME380S

Using Ambient

Hospital

Certification

CE, ISO13485

Overall Length

1900 mm

Width

700 mm

Weight of Bed

90 Kg

Backrest Adjustment

0° ~ 80°

Legrest Adjustment

-45° ~ 25°

Trendelenburg

-12°

Safe Maximum Load

180 Kg

Height Adjustment

560 ~ 820 mm

Power Supply

AC110~240V 50/60Hz

Product Description

Multiple Medical Electric Dialysis Bed Dialysis Equipment Model ME380S

This medical bed features multiple independent adjustment possibilities powered by 3 Linak motors for backrest, height, and legrest. Designed with high-density cushion comfort for patients requiring long periods of sitting, with a robust 180KG capacity.

Key Features

✓All-steel frame providing strong bearing capability, safe working load up to 180kg.

✓High density (45D) polyurethane foam mattress for moderate elasticity and durability.

✓Soft breathable PU upholstery: waterproof, fire retardant, corrosion-resistant, and easy to disinfect.

✓Hand control and three motors for quick positioning, including one-button Trendelenburg (shock position).

✓Mute medical castors (12.5cm diameter) with a central brake system.

✓Detachable and adjustable headrest pillow for personalized patient height.

✓Easy-to-operate collapsible aluminium guardrails and armrests.

Core Advantages

1. Space-Saving Design
Overall dimensions: L 1900 mm x W 800 mm x H 560~820mm. Saves up to 30% of floor space compared to traditional hospital beds.

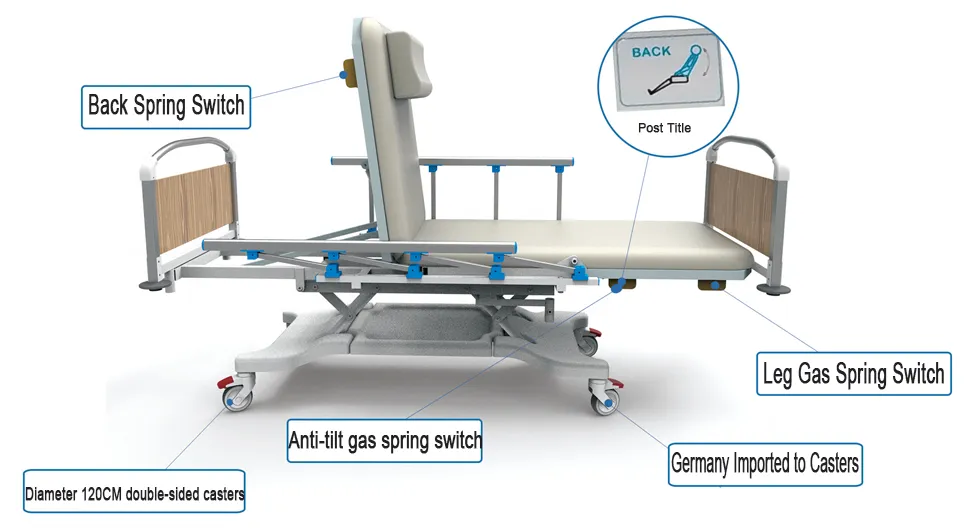

2. Multi-position Adjustment
Equipped with 3 LINAK motors, offering maximum patient comfort and significantly reducing staff workload.

Technical Specification

Model	ME380S
Overall Length	1900 mm
Width	700 mm
Weight of Bed	90 kg
Height Adjustment	560 ~ 820 mm
Legrest adjustment	-45° ~ 25°
Backrest Adjustment	0° ~ 80°
Trendelenburg Position	-12°
Safe maximum load	180 kg
Castor	4x Φ12.5cm swivel castors with separate brakes
Frame	Q235 Steel
Standard Accessories	Table, I.V. pole
Color Optional	Green, Blue, Brown, Ivory
Motors	3 Linak motors
Power Supply	Ac110~240V 50/60Hz

Product Visuals

Frequently Asked Questions

Q1: What is the maximum weight capacity of the ME380S dialysis bed? The bed has a safe maximum working load of 180 kg, supported by a robust Q235 steel frame.

Q2: How many motors control the adjustments? The ME380S is equipped with 3 high-quality Linak motors that independently control the backrest, legrest, and height adjustments.

Q3: Is the bed suitable for Trendelenburg (shock) positioning? Yes, the hand control allows for quick positioning into the Trendelenburg position at a -12° angle with the push of a button.

Q4: What material is used for the upholstery and is it easy to clean? The bed uses breathable PU material which is waterproof, fire retardant, and corrosion-resistant, making it very easy to clean and disinfect in medical environments.

Q5: Can the height of the bed be adjusted? Yes, the bed features an electric height adjustment range from 560 mm to 820 mm to accommodate different patient needs and staff requirements.

Q6: Does the bed save space compared to traditional hospital beds? Yes, its optimized design allows it to save up to 30% of floor space while maintaining full functionality for dialysis treatments.
